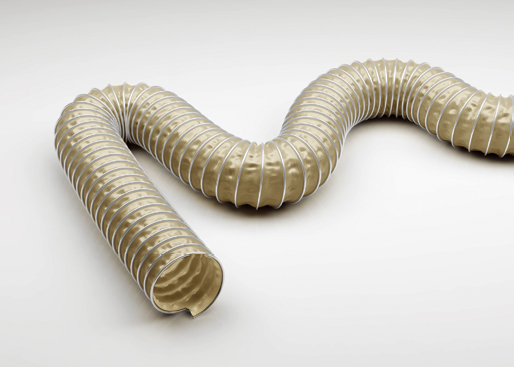

Material clip profile spiral: hot-dip galvanised steel band wall: PTFE-coated glass fabric Applications ● Phamaceutical industry ● Chemicals ● Low pressure range ● Paint mist extraction ● Paint, wood and paper industry ● Solvent extraction ● Suction of aggressive media | Properties ● highly flexible ● excellent chemical resistance ● cold and heat-resistant ● weather-proof ● extremely compressable to approx. 1:6 ● anti-adhesive wall lining material ● optimum medium flow characteristics ● outer chafing protection spiral ●high tension-proof connection of wall-lining and spiral via special clamp mechanism● PTFE: no health risk ●adheres to TRBS 2153 (Zone 1, 21) for non-flammable dusts and gases with lowconductivity for dissipation of electrostatic charges with double-ended grounding of Clips and gradient of < 30 mm (see chapter 17.10.5) Temperature Range ●-150°C to +250°C ● peaks to +270°C |
